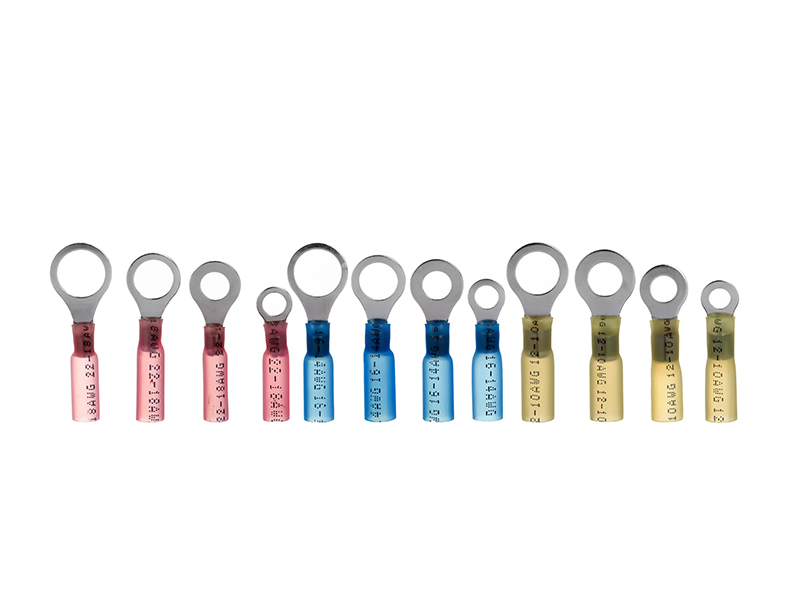

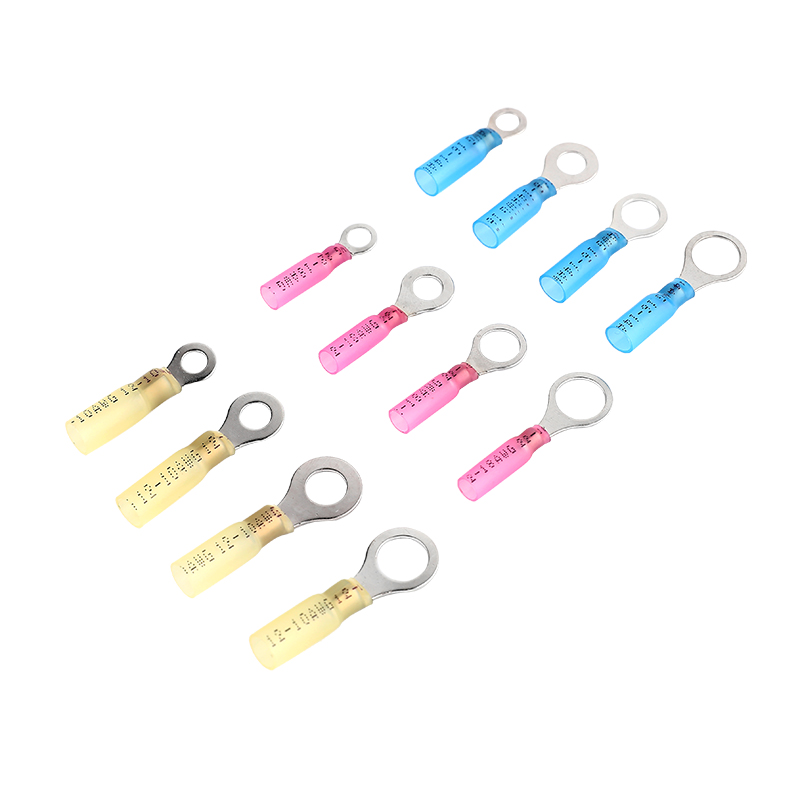

热缩圆形端子
热缩圆形端子
应用
HSRT是由聚烯烃和热熔胶复合生产而成的热收缩套管，用于保护连接、防水防腐蚀，可以在粗糙的环境中加强固定和防震动，具有很好的绝缘保护电子连接器的功能。与常规的连接器相比，具有耐久性、易于安装、安装成本低的优势。
特性
收缩率3：1
材料优异的延伸性能，抗机械损害
透明度佳，提高更好的抗拉力
高弹性能，管材不易变形
操作温度范围
操作温度: -55℃～125℃
开始收缩温度: 80℃
最低完全收缩温度: 130℃
性能参数
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 16MPa | Room temp. |
Elongation | Min. 200% | ||
Aged | Tensile strength | Min. 11.5MPa | 136℃/7 days |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 136℃/7 days | |
Copper corrosion | No corrosion of bare copper | 136℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 136℃/7 days | |
Cold bend | No crack | -30℃/4 hrs | |
Maximum secant modulus(2%) | 250 MPa | - | |
Volume resistivity | Min.1014Ω-cm | - | |
Heat shock | No crack | 200℃/4 hrs | |

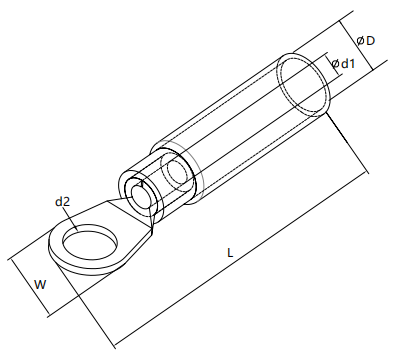

产品规格
Part. No |
Wire Range |
Stud Size(mm) | （mm） | Length（mm） |
Insulator |
Color | ||||
A.W.G | mm2 | Size | d1 | d2 | D | W | L | |||
RVS 1.25-5 | 22-18 | 0.5-1.0 | #10 | 1.6 | 5.2 | 4.7 | 8.0 | 31 | PE | Red |
RV 1.25-6 | 22-18 | 0.5-1.0 | #1/4 | 1.6 | 6.2 | 4.7 | 11.6 | 36.5 | PE | Red |
RV 1.25-8 | 22-18 | 0.5-1.0 | #5/16 | 1.6 | 8.2 | 4.7 | 11.6 | 37 | PE | Red |
RV 1.25-10 | 22-18 | 0.5-1.0 | #3/8 | 1.6 | 10.3 | 4.7 | 13.6 | 37.5 | PE | Red |
RVL 2-5 | 16-14 | 1.5-2.5 | #10 | 2.2 | 5.2 | 5.7 | 8.5 | 31.5 | PE | Blue |
RV 2-6 | 16-14 | 1.5-2.5 | #1/4 | 2.2 | 6.2 | 5.7 | 12.0 | 36.5 | PE | Blue |
RV 2-8 | 16-14 | 1.5-2.5 | #5/16 | 2.2 | 8.2 | 5.7 | 12.0 | 36.5 | PE | Blue |
RV 2-10 | 16-14 | 1.5-2.5 | #3/8 | 2.2 | 10.3 | 5.7 | 13.6 | 39.5 | PE | Blue |
RVL 5.5-5 | 12-10 | 4.0-6.0 | #10 | 3.4 | 5.2 | 6.7 | 9.5 | 35 | PE | Yellow |
RV 5.5-6 | 12-10 | 4.0-6.0 | #1/4 | 3.4 | 6.2 | 6.7 | 12.0 | 39 | PE | Yellow |
RV 5.5-8 | 12-10 | 4.0-6.0 | #5/16 | 3.4 | 8.2 | 6.7 | 15.0 | 44 | PE | Yellow |
RV 5.5-10 | 12-10 | 4.0-6.0 | #3/8 | 3.4 | 10.3 | 6.7 | 15.0 | 44 | PE | Yellow |
