Flexible PVC Heat Shrink Tubing

PRODUCTS > PVC-PET heat shrink tubing > Flexible PVC Heat Shrink Tubing
    • 1

Flexible PVC Heat Shrink Tubing

Flexible PVC, Wide Size Range for Diverse Needs

Application

This product is a flexible polyvinyl chloride heat shrinkable tubing with a relatively thick wall. It is available in a wide range of diameters, from small sizes of Φ5 mm to large sizes up to Φ80 mm, accommodating various application requirements.


Features and Benefits

• Shrink Ratio: 1.7:1

• Excellent flexibility and durability

• Superior chemical and corrosion resistance

• UV and weather resistance; non-discoloring under sunlight

• Wide range of diameters (Φ5 mm – Φ80 mm)

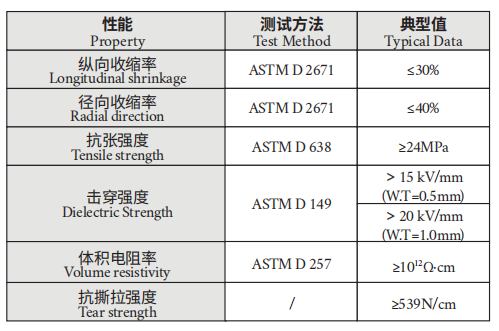

PropertyTest MethodTypical Data
Longitudinal shrinkageASTM D 2671≤30%
Radial directionASTM D 2671≤40%
Tensile strengthASTM D 638≥24MPa
Dielectric StrengthASTM D 149>15 kV/mm (w.T=0.5mm)

>20 kV/mm (w.T=1.0mm)
Volume resistivityASTM D 257≥1012Ω·cm
Tear strength/≥539N/cm

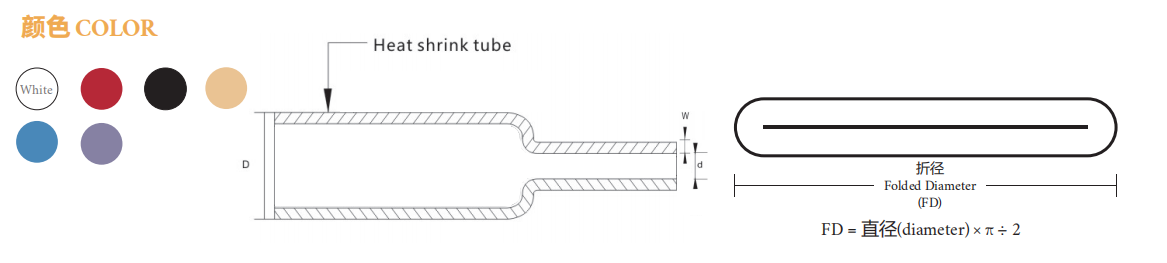

Color

Red, Black, Yellow, Green, Purple


Product Dimension

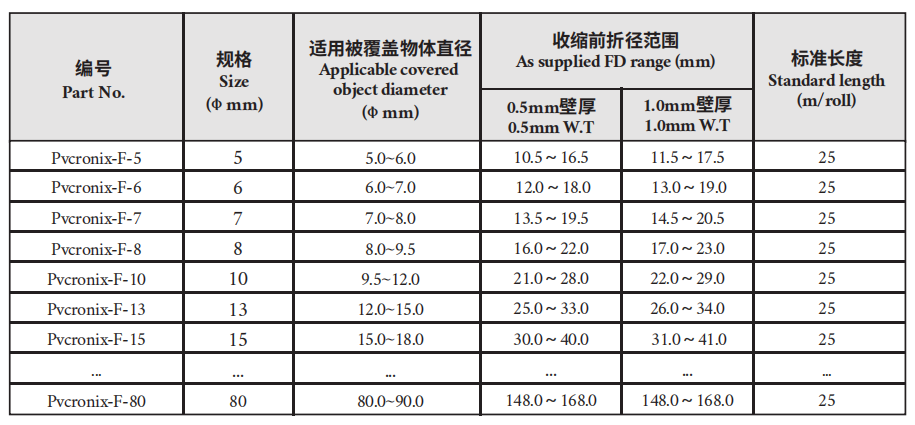

Table A. Product Dimensions
Part No.Size
(Φ mm)		Applicable covered
object diameter (Φ mm)		As supplied FD range (mm)
Standard length (m/roll)
 0.5mmW.T 1.0mmW.T
Pvcronix-F-555.0~6.010.5 ~16.511.5 ~17.525
Pvcronix-F-666.0~7.012.0 ~18.013.0 ~19.025
Pvcronix-F-777.0~8.013.5 ~19.514.5 ~20.525
Pvcronix-F-888.0~9.516.0 ~22.017.0 ~23.025
Pvcronix-F-10109.5~12.021.0 ~28.022.0 ~29.025
Pvcronix-F-131312.0~15.025.0 ~33.026.0 ~34.025
Pvcronix-F-151515.0~18.030.0~40.031.0~41.025
..................
Pvcronix-F-808080.0~90.0148.0 ~168.0148.0 ~168.025


Remarks

1. Custom sizes and colors are available upon request. Technical specifications are subject to change without prior notice. Minimum order quantities (MOQ) may differ from standard packaging quantities.

2. Store this product in a cool, dark place below 20°C, such as a cold storage room or refrigerator, and avoid exposure to direct sunlight, heat sources, or heated rooms to prevent shrinkage.
