150°C Flexible Flame-Resistant PVDF Heat Shrink Tubing

PRODUCTS > Special-purpose heat shrink tubing > 150°C Flexible Flame-Resistant PVDF Heat Shrink Tubing
    • 1

150°C Flexible Flame-Resistant PVDF Heat Shrink Tubing

High-Temp, Flexible, Chemical-Resistant Protection

Application

Manufactured from irradiation cross-linked fluoropolymer, this tubing offers outstanding chemical, solvent, and abrasion resistance at elevated temperatures. It ensures reliable insulation, strain relief, and protection for wires and electronic components, while also supporting clear identification and inspection.


Features and Benefits

• Shrink Ratio: 2:1

• Highly flame-resistant and flexible

• Good toughness and abrasion resistance

• Excellent clarity and stability

• Meets environmental requirements.

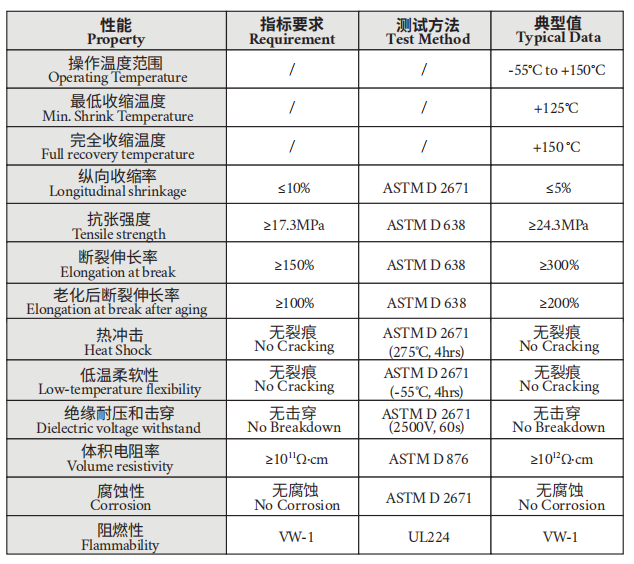

PropertyRequirementTest MethodTypical Data
Operating temperature//-55°C to +150°C
Min. shrink temperature//+125°C
Full recovery temperature//+150 °C
Longitudinal shrinkage≤10%ASTM D 2671≤5%
Tensile strength≥17.3MPaASTM D 638≥24.3MPa
Elongation at break≥150%ASTM D 638≥300%
Elongation at break after aging≥100%ASTM D 638≥200%
Heat ShockNo CrackingASTM D 2671 (275℃, 4hrs)No Cracking
Low-temperature flexibilityNo CrackingASTM D 2671 (-55℃, 4hrs)No Cracking
Dielectric voltage withstandNo BreakdownASTM D 2671 (2500V, 60s)No Breakdown
Volume resistivity≥1011Ω·cmASTM D 876≥1012Ω·cm
CorrosionNo CorrosionASTM D 2671No Corrosion
FlammabilityVW-1UL224VW-1

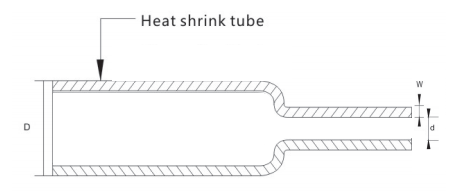

Product Dimension




Table A. Product Dimensions
Part No.Size (Φ mm)As supplied (mm)After recovered(mm)Standard packing (m/pc, m/roll)
I.D.min(D)I.D.max (d)
Flonfit-150FV-1.21.2 (3/64")1.20.61.22/200
Flonfit-150FV-1.61.6 (1/16")1.60.81.22/200
Flonfit-150FV-2.42.4 (3/32")2.41.21.22/200
Flonfit-150FV-3.23.2 (1/8")3.21.61.22/200
Flonfit-150FV-4.84.8 (3/16")4.82.41.22/100
Flonfit-150FV-6.46.4 (1/4")6.43.21.22/100
Flonfit-150FV-9.59.5 (3/8")9.54.81.22/100
Flonfit-150FV-12.712.7 (1/2")12.76.41.22/50
Flonfit-150FV-19.119.1 (3/4")19.19.51.22/50
Flonfit-150FV-25.425.4 (1")25.412.71.22/50
Flonfit-150FV-38.138.1 (3/2")38.119.11.22/50


Custom sizes and colors are available upon request. Technical specifications are subject to change without prior notice. Minimum order quantities (MOQ) may differ from standard packaging quantities.
