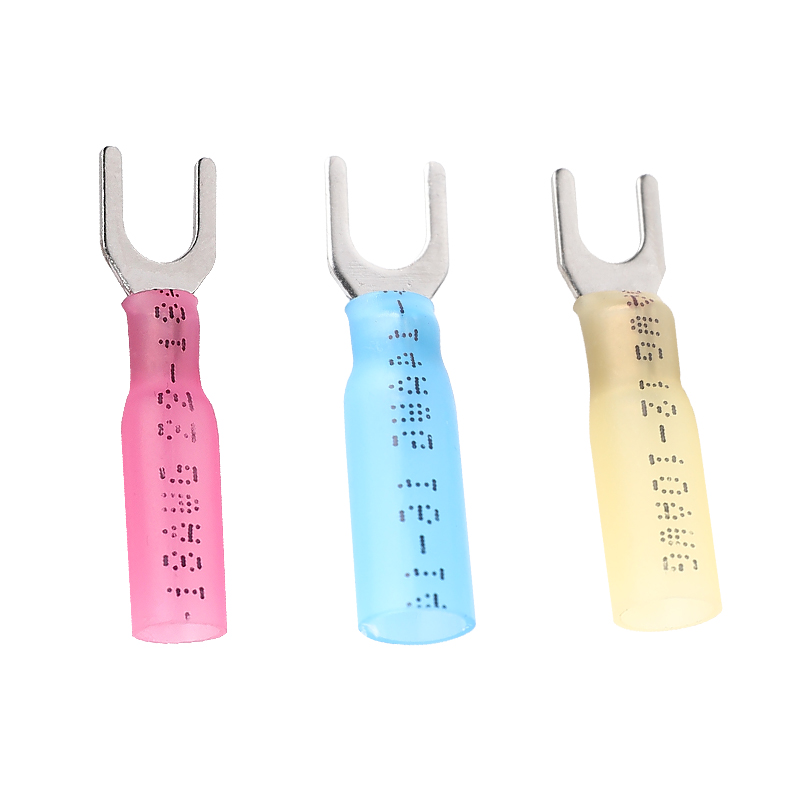

HSYT Heat Shrinkable Terminals

HSYT are heat shrinkable sleeves made of polyolefin and hot melt adhesive. They are used for protection connection, waterproof and anti-corrosion.

Applications

HSYT are heat shrinkable sleeves made of polyolefin and hot melt adhesive. They are used for protection connection, waterproof and anti-corrosion. It can strengthen the fixing and anti-vibration in a rough environment. It has a good function of insulating and protecting the electronic connector. Durable, easy to install, and low installation cost compared to conventional connectors.

Characteristics

Shrinkage ratio 3:1

Excellent stretch and mechanical damage resistance

Ideally translucent provides tensile strength

High elasticity keeps steady performance

Operating temperature range

Operating temperature : -55℃~125℃

Minimum shrink temperature : 80˚C

fully recovery temperature : 130˚C

Technical Indicators



Test Item

Characteristics

Test condition

Unaged

Tensile strength

Min. 18MPa

Room temp.


Elongation

Min. 200%


Aged

Tensile strength

Min. 11.5MPa

136℃/7 days


Elongation

Min. 100%


Voltage withstand and breakdown Voltage(Unaged)

Withstand 2.5 KV for 1minute and breakdown

Room temp.

Voltage withstand and breakdown Voltage(Aged)

Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage

136℃/7 days

Copper corrosion

No corrosion of bare copper

136℃/7 days

Copper stability

No sign of degradation Min.Elongation 100%

136℃/7 days

Cold bend

No crack

-40℃/4 hrs

Maximum secant modulus(2%)

250 MPa

-

Volume resistivity

Min.1014Ω-cm

-

Heat shock

No crack

200℃/4 hrs

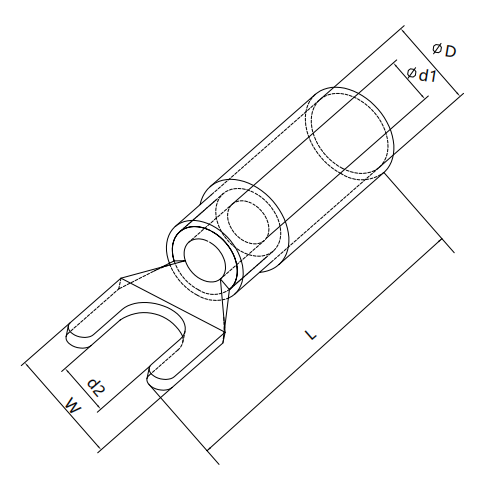

Product specifications

Part. No

Wire Range

Stud Size(mm)

Width(mm)

Length(mm)

Insulator

Color

A.W.G

 mm2

Size

d1

d2

D

W

L



SVL 1.25-5

22-16

0.5-1.5

#10

1.7

5.2

4.7

8.0

31

PE

Red

SVL 2-5

16-14

1.5-2.5

#10

2.3

5.2

5.7

8.0

31

PE

Blue

SV 5.5-5

12-10

4-6

#10

3.4

5.2

6.7

9.0

36

PE

Yellow
