n 应用 Application
由辐照交联特种含氟聚合物制成，应用于需要耐高温、耐磨擦的场合，具有优异的耐化学腐蚀和耐溶剂性能。保护线缆或被覆元器件免受机械损伤或化学腐蚀，用于线缆或元器件的标记保护，连接焊接处的绝缘和应力解除。
It is made of irradiation cross-linked special fluoropolymer with outstanding chemical and solvent resistance to be used for where to need high-temperature and abrasion resistance. To prevent wire and cable markers from mechanical and chemical abuse. It reliably protects electronic components while permitting their identification and inspection. Can also be used to provide insulation and strain relief of electrical connections and wire terminations, identification of wires, and packaging of components.
n 特性 Characteristics
l 收缩比 2：1, 3:1 Shrink ratio 2:1, 3:1
l 优异的阻燃性 Highly flame-resistant
l 柔软、耐高温 Flexible, high-temperature resistant
l 韧性好，耐磨，优异的物理性能和耐化学腐蚀性能 Good toughness and abration resistance, excellent physical and chemical properties.
l 透明产品的透明度和透明稳定性好 Clear product has good clarity and clarity stability
l 符合RoHS、REACH环保规范RoHS and REACH compliant.
n 操作温度范围Operating Temperature Range
l 连续使用温度：-55℃～150℃ Operating temperature: -55℃ ~ 150℃
l 最低起始收缩温度：125℃ Minimum shrink temperature: 125℃
l 最低完全收缩温度：150℃ Minimum fully recovery temperature: 150℃
l
n 符合标准Approvals
AMS-DTL-23053/18, Class 2
UL224 E360866 150℃ 600V VW-1
n 性能指标Property
性能 Property | 指标要求 Requirement | 测试方法 Test method | 典型值 Typical data |
纵向收缩率 Longitudinal shrinkage | ≤10% | ASTM D 2671 | ≤5% |
抗张强度 Tensile strength | 17.3MPa min. | ASTM D 638 | ≥25MPa |
断裂伸长率 Elongation at break | 150% min. | ASTM D 638 | ≥300% |
老化后断裂伸长率 (热老化 225℃,168小时) Elongation after ageing (225℃，168hrs) | 100% | ASTM D 638 | ≥200% |
热冲击(275℃,4小时) Heat shock(275℃，4hrs) | 无裂痕 No crack | ASTM D 2671 | 无裂痕 No crack |
低温柔软性(-55℃,4小时) Low-temperature flexibility(-55℃，4hrs) | 无裂痕 No crack | ASTM D 2671 | 无裂痕 No crack |
绝缘耐压和击穿 Dielectric voltage withstand | 2500V,60sec,不击穿 2500V,60sec, no breakdown | ASTM D 2671 | 无击穿 No breakdown |
体积电阻率 Volume resistivity | 1011Ω·cm min. | ASTM D 876 | ≥1012Ω·cm |
腐蚀性 Corrosion | 无腐蚀 No corrosion | ASTM D 2671 | 无腐蚀 No corrosion |
阻燃性 Flammability | VW-1 | UL224 | 通过 pass |
n 规格尺寸 Sizes
规格 Size | 收缩前(mm) As supplied | 完全收缩后(mm) After recovered | 标准包装 (m/条或m/卷) Standard packing (m/pc, m/roll) | ||
英制 inch | 公制 mm | 内径 (min.) Inside diameter (min.) | 内径 (max.) Inside diameter (max.) | 壁厚 Wall thickness | |
3/64 | Ф1.2 | 1.2 | 0.6 | 0.25±0.05 | 1.2/200 |
1/16 | Ф1.6 | 1.6 | 0.8 | 0.25±0.05 | 1.2/200 |
3/32 | Ф2.4 | 2.4 | 1.2 | 0.25±0.05 | 1.2/200 |
1/8 | Ф3.2 | 3.2 | 1.6 | 0.25±0.05 | 1.2/200 |
3/16 | Ф4.8 | 4.8 | 2.4 | 0.25±0.05 | 1.2/100 |
1/4 | Ф6.4 | 6.4 | 3.2 | 0.30±0.08 | 1.2/100 |
3/8 | Ф9.5 | 9.5 | 4.8 | 0.30±0.08 | 1.2/100 |
1/2 | Ф12.7 | 12.7 | 6.4 | 0.30±0.08 | 1.2/100 |
3/4 | Ф19.1 | 19.1 | 9.5 | 0.43±0.08 | 1.2/50 |
1 | Ф25.4 | 25.4 | 12.7 | 0.48±0.08 | 1.2/50 |
1 1/2 | Ф38.1 | 38.1 | 19.1 | 0.51±0.08 | 1.2/50 |
2 | Ф50.8 | 50.8 | 25.4 | 0.58±0.08 | 1.2/50 |
其它规格尺寸可定制
Other sizes are available upon request.

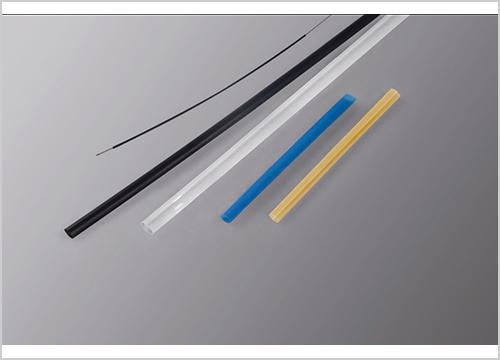

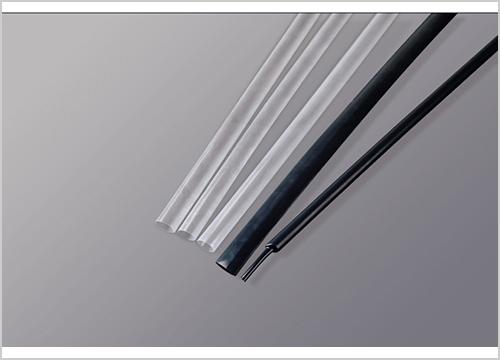

n 颜色Color
标准颜色：透明、黑色
Standard color: Clear, Black
其它颜色可定制
Other colors are available upon request.
